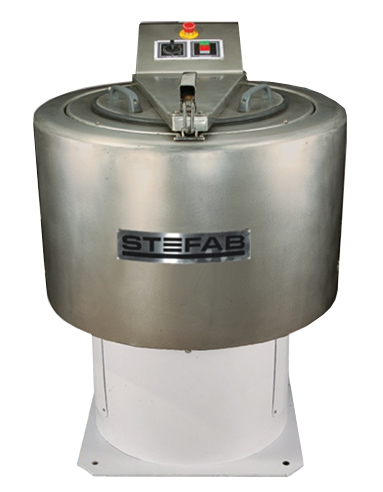

Direct Drive Hydro Extractors. Self Balancing.

'HX' RANGE

Stainless Steel Body. Automatic DC Injection Brake.

Intended Use:

Centrifugal extraction of water from all types of linen, garments & textile made up articles after washing.

15 KG Capacity, Model HX 15
30 KG Capacity, Model HX 30
60 KG Capacity, Model HX 60

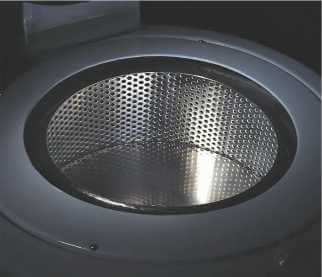

Stainless Steel Cylinder & Outer Drum

Inner cylinder can be dismantled without dismantling outer drum. Electrically interlocked top Lid stops the machine when opened. Three position drain connection with outer drum. Outer casing mounted on galvanized & hot painted heavy base frame. Long rust free life & strength.

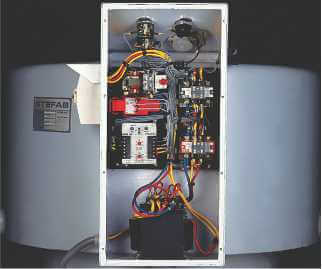

Automatic DC Injection Brake

DC ( Direct current - Low voltage ) brake applies automatically after timed run of the machine. Running and braking time are digitally controlled. No foot pedals. No levers. No brake liners. No maintenance. Convenience & safety for the operator.

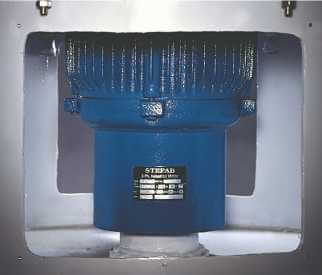

Direct Drive. Self Balancing.

Cylinder is directly mounted on to a specially designed high torque heavy duty motor resting on spigot of the base frame with built-in Rubber Buffer cushion for self balancing. No ‘V’ Belts. No speed loss. Quick self balancing. Noiseless & vibration less performance.

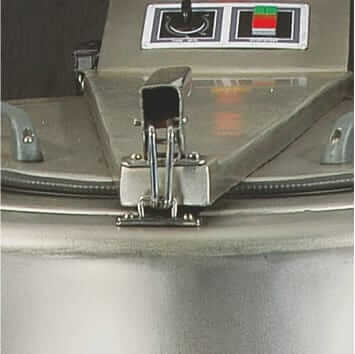

Durable Lock Mechanism

Durable lock mechanism which gives the user a better & safe locking exeperience during high RPM of the machine.
